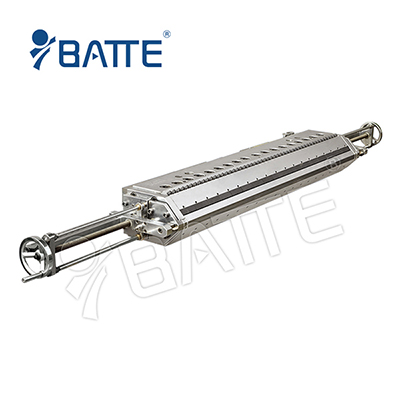

Coating Film Die

Application field

stationery film,print film,retain fresh film

Technical data
Item Specification
Die steel P20/5CrNiMo
Material
PE/HDPE/LDPE/PA/PS/LDPP/HDPP/ABS/EVA/PC/PMMA
width from 800mm to 3000mm, thickness below 2mm
Width of the die 200mm-3000mm adjustable
Thickness of the product 0.015-0.45mm
Choked flow rope 45 °or 90°
Way of flow passage clothes rack type
Driving power 6KW
Sections of the mould 4-20sections
Voltage 220V/50hz  or according your need
Heating type heating inside
 Heater element stainless steel heating rod
Mode of connection closed cycled connection
Fastening piece 12.9 high strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization  the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation parallel extrusion installation
Way of charging central ring charging way
